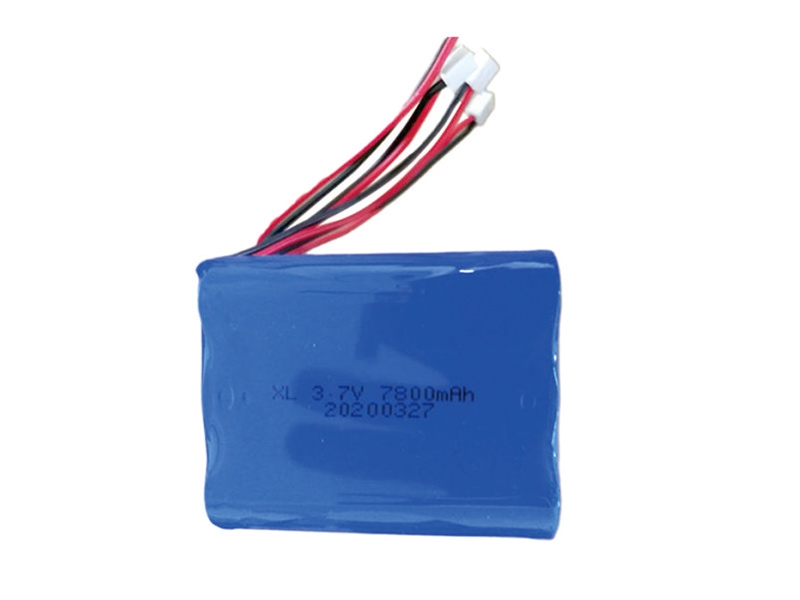

3.7V high temperature lithium battery Product model: XL 3.7V 7800mAh
3.7V high temperature lithiu๊m battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
·Single battery voltage: 3.7V
·The nominal voltage of the battery pack after assembly: 3.7V
·Single battery capacity: 2600mAh
·Battery combination: 1 string 3 parallel
·Battery voltage range after combination:2.5~4.2V
·Battery capacity after combination: 7800mAh
· Battery pack power: 28.86Wh
·Battery pack size: 20*55.5*70mm
·Maximum discharge current: <7A
·Instantaneous discharge current: 10~15A
·Maximum charging current: 0.2-0.5C
·Charging and discharging time:> 500 times
·Main chip: Seiko series
3.7V high temperature lithium battery
·Comply with the national standards and requirements of related batteries
·All finished battery products have been calibrated and🃏 tested before leaving the factory
